Introduction of HSP Mining Explosion-proof Wet Shotcrete Machine
HSP-7B Mining Explosion-proof Wet Shotcrete Machine is widely used in engineering and construction, mining, tunnel, culvert, subway, hydropower engineering, underground engineering and high marsh coal mine tunnel shotcrete construction operations.
Parameter of HSP Mining Explosion-proof Wet Shotcrete Machine
|
item |
HSP-5B |
HSP-7B |
|
Output |
5 m³/H |
7m³/H |
|
Max. Convey dist |
Horizontal:30m Vertical: 20m |
Horizontal:30m Vertical: 20m |
|
Concrete proportion |
1:4-5C/A |
1:4-5C/A |
|
Water cement ratio |
≤0.4 |
≤0.4 |
|
Hose inner size |
Φ51m |
Φ51m/64mm |
|
Max. Aggregate size |
15mm |
15mm |
|
Operating air pressure |
0.3-0.6MPa |
0.4-0.6MPa |
|
Air consumption |
10-15m³/min |
10-15m³/min |
|
Rotor diameter |
438mm |
480mm(160) |
|
Spring rate level |
≤10% |
≤10% |
|
The accelerating liquid adding amount |
0.3-0.7% |
0.3-0.7% |
|
main Electric motor power |
Y132m-6-5.5KW |
Y160m-6-7.5KW |
|
Accelerating metering pump |
pneumatic |
pneumatic |
|
Overall dimension(mm) |
1280x700x1280 |
2000X800X1300 |
|
Whole weight |
700kg |
800kg |
|
Rail wheel gauge |
600mm(762or 900mm) |
|

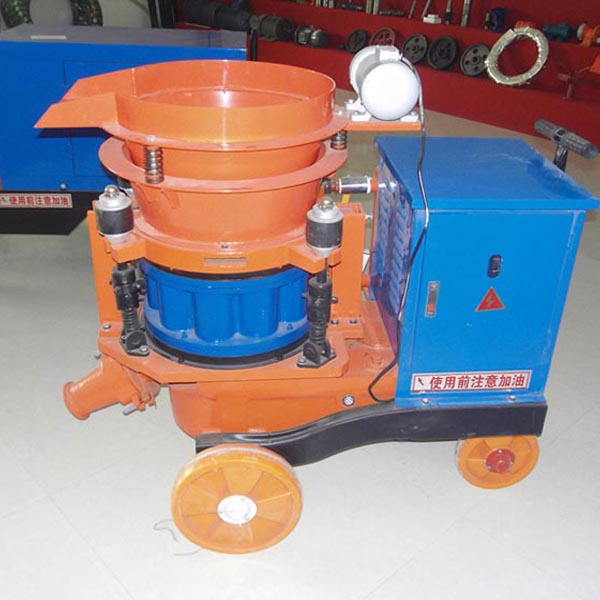

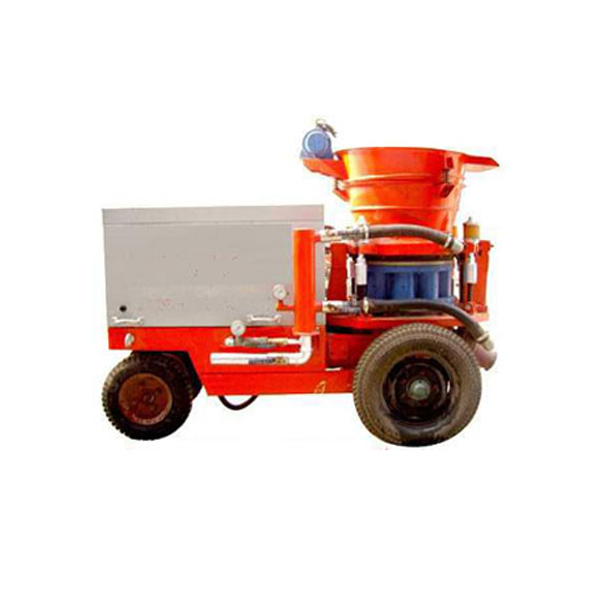

Pictures of HSP Mining Explosion-proof Wet Shotcrete Machine
