PZ-3 Concrete Spraying Machine

PZ Dry Mix Concrete Shotcrete Guniting Equipment Special for the coal mine Adopting Special Anti-explosion Motor Factory Price -ODM Offer This is a kind of Coal Mining Gunite Equipment-Shotcrete Machi

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of PZ-3 Concrete Spraying Machine

PZ-3 Concrete Spraying Machine
Special for the coal mine
Adopting Special Anti-explosion Motor
Factory Price
-ODM Offer
PZ-3 Concrete Spraying Machine is a kind of Coal Mining Gunite Equipment-Shotcrete Machine,especially for mine.
1. Environmental:It can reduce the dust concentration around the machine and the spraying gun when the wet shotcrete machine work,so as to lower the harm to workers’ health.
2. rebound less to strengthen sprayed layer.
3. It can greatly improve the spray quality and the uniformity of concrete--because the water & cement ratio is easy to control when wet Shotcreting, and the concrete curing degree is higher.
4.Unique vibrating hopper feeds the concrete into the dosing system smoothly
5.Standardized dosing pump can add exactly concrete accelerator.
6. We can change the color according to your actual requirements.
7. Custom the voltage motor based on your country.
8 .The tread of mine rail wheel have 600mm or 900mm for your choice.

Parameter of PZ-3 Concrete Spraying Machine

Model

PZ-3

Capacity (m3/h)

3.5

Max. Conveying Distance (Horizontal,Vertical m)

200,20

Use material ratio(Cement/Sand)

2001-3-5

Use material water-cement ratio

≤0.4

Max. Aggregate Diameters (mm)

20

Feeding pipe inner diameters(mm)

38

Rotor Diameter(mm)

350

Working pressure (MPa)

0.4-0.6

Air consumption (m3/min)

3-4

Motor Model

Y112M-6-3KW

Voltage(V) (according to customer's special requirement)

380,660,etc

Overall size (mm)

1040*550*940

Overall weight (kg)

260

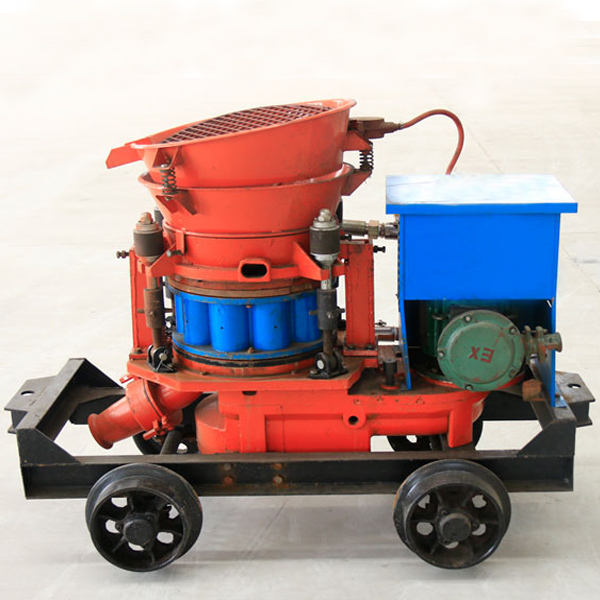

Pictures of PZ-3 Concrete Spraying Machine
