Small Asphalt Paver

The mini asphalt paver is widely used in a variety of scenarios: for home, road maintenance, community and park pavement construction, yard asphalt paving, old neighborhood renovation and so on. Smal

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of Small Asphalt Paver

Small Asphalt Paver Advantages:

1.Engine
High horsepower engine, strong machine power, fuel-efficient and environmentally friendly, transistorized magneto ignition system, easy starting

2.Thickness adjustment system
The left and right double cylinders independently control the paving thickness with professional thickness adjustment system, which makes the paving smooth and even, far exceeding the artificial paving flatness.

3.Convenient movement and turnaround
Hydraulic axle with two-wheel drive, with universal wheels for faster movement and transfer.

4. Adjustable hopper
4 paving widths can be freely adjusted between 250-1000mm.

5.Handle control
Forward and reverse control by handle, easy to operate and flexible in response.

6. Flexible transfer
Paving width selection, can adapt to a variety of road surface requirements, for the community, garden paths, road shoulders and other small places of asphalt paving operations can be easily dealt with.

Parameter of Small Asphalt Paver

Small Asphalt Paver ZM-1000
Engine HONDA GXV160
Engine specification Air-cooled single cylinder gasoline
Rated power 3.2kw
Maximum working width 1000mm
Minimum working width 250mm
Maximum working speed 28m/min
Maximum Turning Speed 3.2km/h
Fuel capacity 4L
Maximum operating weight 530kg
Transportation dimensions 2250x1200x1150mm

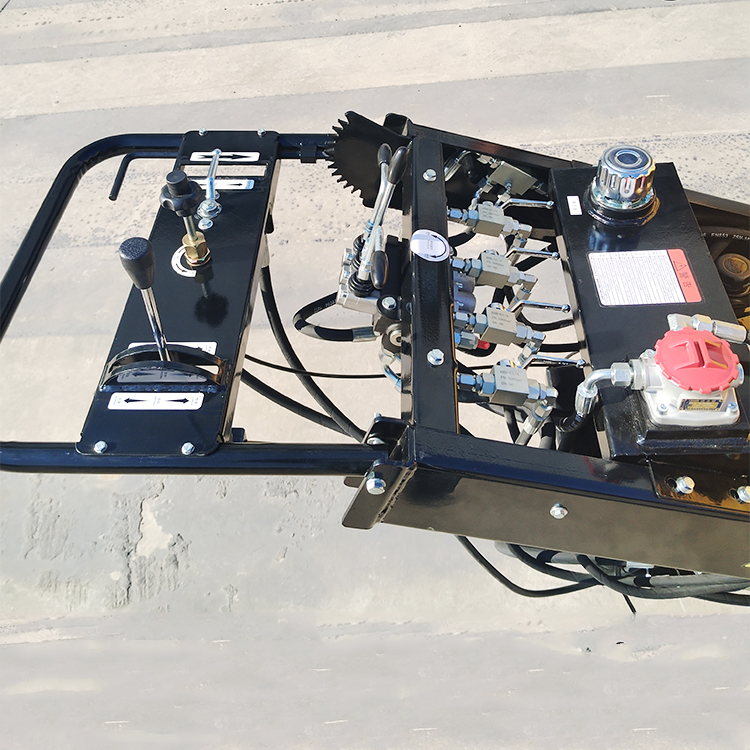

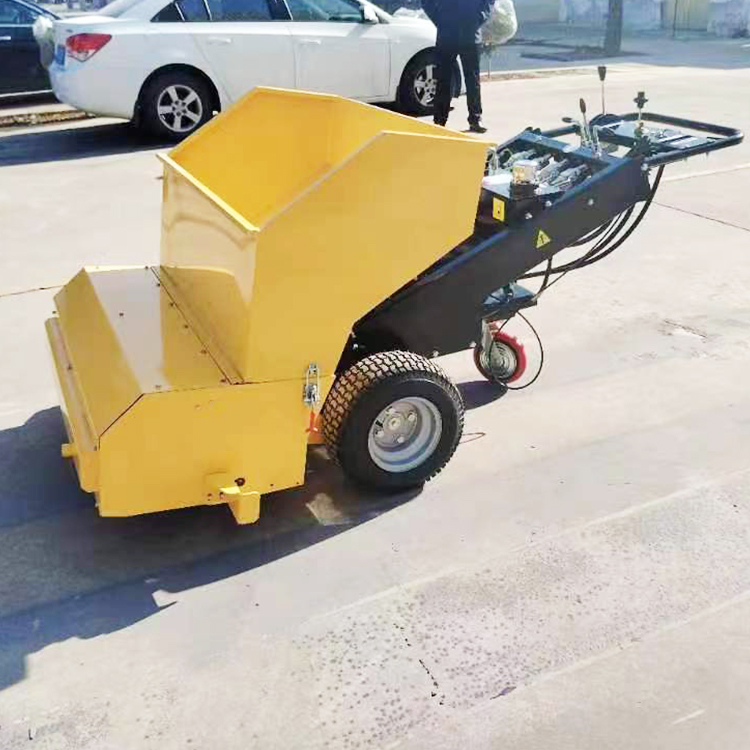

Pictures of Small Asphalt Paver
