Pneumatic Wire Romote Control Air Winch

The Pneumatic Wire Romote Control Air Winch is mainly used to metal, chemical, contribution and the mine etc, and the underground working, such as the transportation etc. Meanwhile, the scrape winch i

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of Pneumatic Wire Romote Control Air Winch

The Pneumatic Wire Romote Control Air Winch is mainly used to metal, chemical, contribution and the mine etc, and the underground working, such as the transportation etc. Meanwhile, the scrape winch is just suitable to the parallel transportation on ground, or the slopes within 500; Not be the hoisting machines.
b. The main components of the Pneumatic Wire Romote Control Air Winch :deceleration device, main roll, Vice reel, control devices, wire guiding device and motor. These parts were installed inside and outside the shell, the shell is a good steel parts, both to protect the supporting role, but also to bear all the load. It is connected on the basis of two slide bolt.
Binoculars winch a master reel (mounted on the right, ie, close to the motor side), a secondary reel (mounted on the left).
A master reel (mounted in the middle) in the three-drum winch, two vice reel (mounted on the left and right), three drum winch can be mounted two main reel (mounted on the right and middle), a vice volume cylinder (mounted on the left), each roll corresponding control device and a wire rope guide.
Feauture of Pneumatic Wire Romote Control Air Winch
1. Equipped with cylinder air brake , which enables the winch automatically in brake when stops.
2. Variable speed control, flexible to perform clockwise and anti-clockwise rotation.
3. Compact in size, light weight, portable to move and easy to install.
4. High practicability with anti-explosive function, especially stable and reliable in inflammable,explosive,wet,damp,and other extremely working environments.
5. High starting torque ensures it starting with load and performing hoisting, lowering and stopping actions easily.
6. Reliable operation with little noise with muffler.
7. Low maintenance relieves your anxiety and assures you to use it freely.
8. Especially fit for hauling and lifting drilling pipes on the second platform of oilfields.
9. This is a kind of Air winches are available from 0.5ton to 10 ton capacities. Pull Force can be tailor-made to your requirements.

Parameter of Pneumatic Wire Romote Control Air Winch

Model No.

JQHS-100X12

Pressure of compressed air (Mpa)

0.6-0.8

Max. traction force (kN)

100

Wire rope velocity (m/min)

12

Pneumatic motor

rated Power(kw)

30

Piston stroke(mm)

110

Cylinder number(pcs)

5

Drum

Drum Diameter(mm)

300

Width(mm)

620

Wheel rim diameter(mm)

660

Rope content (m)

200

Wire rope diameter(mm

24

Outer Dimension

Length(mm)

1700

Width (mm)

1050

Height(mm)

1200

Weight(kg)

1450

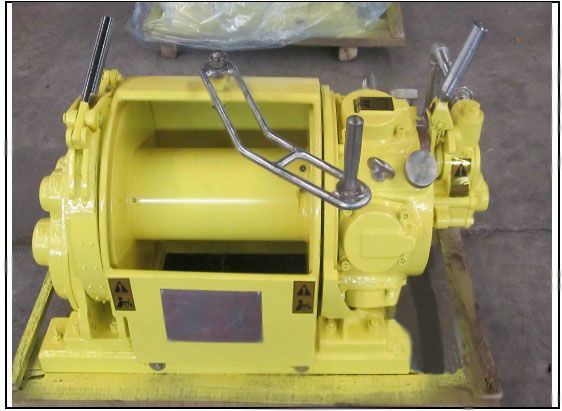

Pictures of Pneumatic Wire Romote Control Air Winch
