China Mining&Construction Equipment Co., Ltd

Position: Home » Product List » Playground Machinery » TPJ-2 Type Playground Road Paver
  • TPJ-2 Type Playground Road Paver
  • TPJ-2 Type Playground Road Paver
  • TPJ-2 Type Playground Road Paver

TPJ-2 Type Playground Road Paver

TPJ-2 Type Playground Road Paver for running way is the paving equipment of synthetic running track with high technical contained manufactured by our company.

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of TPJ-2 Type Playground Road Paver

TPJ-2 Type Playground Road Paver for running way is the paving equipment of synthetic running track with high technical contained manufactured by our company.
TPJ-2 Type Playground Road Paver is assembled the advanced the technology of Siemens frequency conversion step less speed regulation and the hydraulic gear , enhance the automatically of paving .
Its performance satisfied the sports fields construction requirement and achieve and achieve the quality and technical specification .
its highly effective ,low consumption ,high quality and easy operation and so many good characteristics is approved by domestic and foreign customers.

Parameter of TPJ-2 Type Playground Road Paver

Name

TPJ-2 Type Playground Road Paver

Model

TPJ-2.5

TPJ-2.0

TPJ-1.5

Actual Width

2800mm

2300mm

1800mm

Paving Width

2500mm

2000mm

1500mm

Moving Speed

0.8-6m/min

0.8-6m/min

0.8-6m/min

Paving Capability

500 sq.m./h

400 sq.m./h

300 sq.m./h

Power

8kw

8kw

8kw

Temperature adjustment for electric heating board

90-120 centigrade

90-120 centigrade

90-120 centigrade

Machine Weight

850kg

700kg

600kg

Dimension

3000*1800*720mm

2500*1700*720mm

2000*1700*720mm

Packing Style

Wooden case

Wooden case

Wooden case

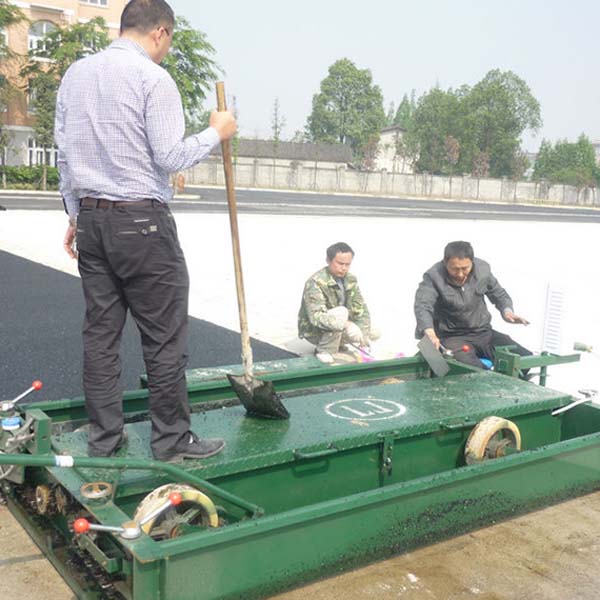

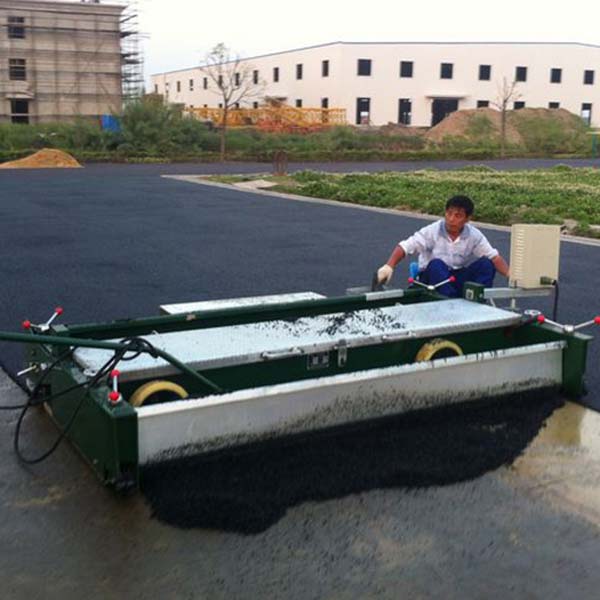

Pictures of TPJ-2 Type Playground Road Paver
