JHL135 13.5 Ton Long Arm Excavator

JHL135 13.5 Ton Long Arm Excavator adopting world famous brand engine, with strong driving force, low noise, low oil consumption, and more reliable.

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of JHL135 13.5 Ton Long Arm Excavator

1. JHL135 13.5 Ton Long Arm Excavator adopting world famous brand engine, with strong driving force, low noise, low oil consumption, and more reliable.
2. JHL135 13.5 Ton Long Arm Excavator adopting energy saving hydraulic system, main hydraulic parts using original world famous brand to guarantee the good quality and work performance. Low energy consumption, fast response speed, precision control, small impact, can keep strong mining capacity and excellent operation efficiency.
3. JHL135 13.5 Ton Long Arm Excavator using high performance radiator, unobstructed air flow, fast flow speed, good hear dissipation effect, stable working temperature, and long service life.
4. The welding of machine main structures use automatic welding robot, key parts welding flaw detection to ensure all parts in high strength, high quality, and to prolong the service life of the machine.
5. Good vibration and noise effect of the cab, both warm and cool air-conditioner, makes driving comfortable and safe.

Parameter of JHL135 13.5 Ton Long Arm Excavator

Standard Bucket Capacity(m3)

0.6

Swing Speed(rpm)

12

Max.Grade Ability(°)

25

Max.Bucket Digging Force(kN)

68

Max.Arm Digging Force(kN)

54

Engine Model

YC4A115-T20

Rated Power Output/Revolution(kw/rpm)

85/2200

Tire Type

9.0-20

Set Pressure of Hydraulic Pump(MPa)

32

MAX digging height(mm)

7580

MAX dumping height(mm)

5340

MAX digging depth(mm)

4095

MAX digging radius(mm)

7557

Min swing radius(mm)

2988

MAX dozer lifting height(mm)

558

MAX dozer cutting depth(mm)

80

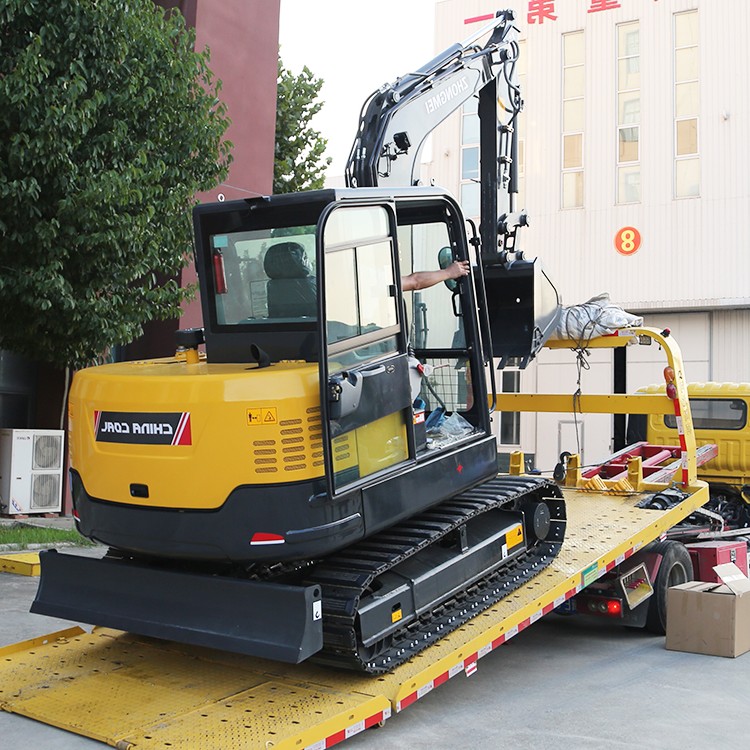

Pictures of JHL135 13.5 Ton Long Arm Excavator
