Scraper Winch Technical Index

211 Date: 2020-07-25 Tag: Scraper Winch.Technical Index of Scraper Winch

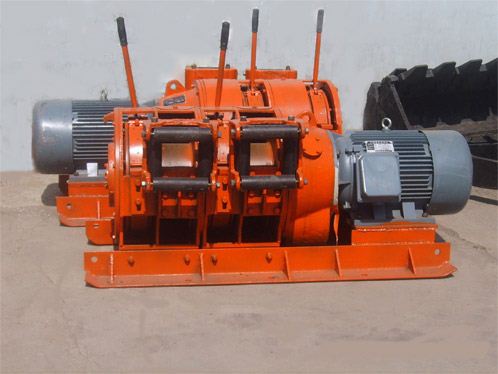

Scraper winch is a type of winch that is powered by a piston pneumatic engine and is operated by hand or remotely. Scraper winch has the characteristics of small volume, light weight, high efficiency, simple operation, easy handling, safe and reliable and so on. Scraper winches can be used for lifting or hauling heavy objects in places such as land drilling, offshore drilling platforms, mine drilling, ships and flammable gases.

Scraper Winch Technical Index


Technical Index of Scraper Winch


High tensile force: 50KN; large rope speed: 35M / MIN; rated intake air pressure: 0.80MPA; rated gas consumption 18.3m3 / min; rope capacity: 140M; wire rope diameter: 20mm (3/4 in); weight: 550KG


The mine scraper winch has advanced level, adopts stepless speed change, has the characteristics of easy operation, stable operation, compact structure, and has the function of self-locking for parking, which is reliable in use. Suitable for places with flammable and explosive gases, it is an ideal equipment for oil fields, well sites and hoisting.
